UC-246

1 Port RS232 PCI Serial Port Card

Description

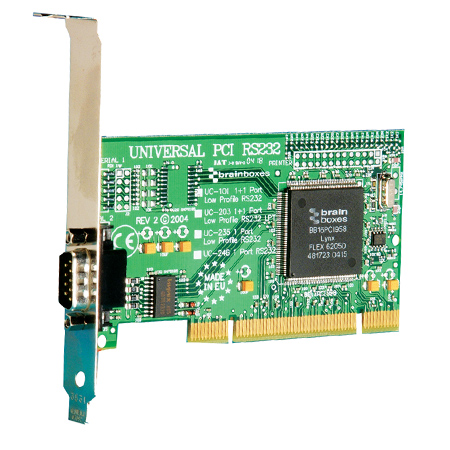

Universal PCI providing one RS232 serial port. Data transfer rates up to 115,200 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 7.
Documents
UC 246 datasheetUC-246-datasheet.pdf (1.2 MB)
UC RS232 PCI range summary English.UC ENUC-RS232-PCI-range-summary-English.UC-EN.pdf (1.5 MB)
UC RS422 485 range summary English.UC ENUC-RS422-485-range-summary-English.UC-EN.pdf (1.5 MB)
Brief Specification
Ports
1
Protocol
RS232
UART
Brainboxes 16C958
Max Baud Rate
115,200
Form Factor
Standard Height

If you buy 2 or more products

free shipping

Volume Purchase? Request a Quote

  • Tech Spec
  • Operating Systems
  • Approvals
  • Support
  • Related Products
Port
Ports
1
Protocol
RS232
Connector

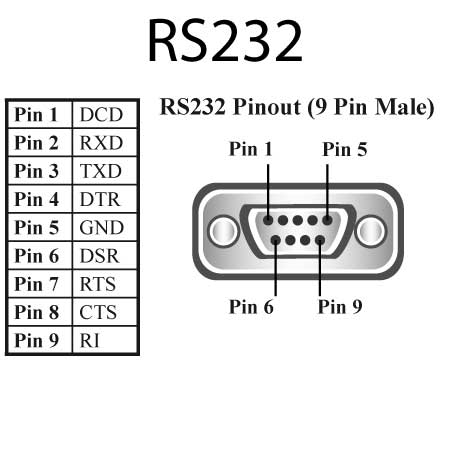

DB9 Connector - 9 Pin Male
UART
Brainboxes 16C958
UART Compatibility
16750/16550/16450 backwards compatible as well as an enhanced 950 mode
Tx FIFO Size
128
Rx FIFO Size
128
Operating Distance
EIA - RS232 Standard
Cable
No Cable; Integrated Connector
Port Settings
Max Baud Rate
115,200
Data Bits
5,6,7 or 8
Parity
Odd, Even, None, Mark or Space
Stop Bits
1, 1.5 or 2
Flow Control
RTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx Modes
Point to Point
General
PCB Layers
4
Form Factor
Standard Height
Includes Printer Port
No
Opto Isolated
No
Power Consumption
190mA @ 5V, 12mA @ 12V
Product Weight
0.064 kg, 0.14 pounds
Product Dimensions
132(l) x 18(w) x 120(h) mm, 5.20(l) x 0.71(w) x 4.72(h) inches
Packaged Weight
0.162 kg, 0.36 pounds
Packaged Dimensions
150(l) x 40(w) x 145(h) mm, 5.91(l) x 1.57(w) x 5.71(h) inches
GTIN-12
837324000337

Interface

PCI 3.0
PCI 3.0
Peripheral Component Interface
Windows XP 32 bit & 64 bit Editions
Microsoft Windows 2000
Windows Vista 32 bit & 64 bit Editions
Windows Server 2003 32 bit & 64 bit Editions
Windows Server 2008 32 bit & 64 bit Editions
Microsoft Windows 7 32 bit & 64 bit Editions
DOS

Microsoft Hardware

Approved for Microsoft Windows XP 32 bit and 64 bit Windows XP 32 bit & 64 bit editions
Approved for Microsoft Windows Server 2003 Windows Server 2003 32 bit & 64 bit editions
Approved for Microsoft Windows Vista Windows Vista 32 bit & 64 bit editions
Approved for Microsoft Server 2008 Windows Server 2008 32 bit & 64 bit editions
Approved for Windows 7 32bit & 64bit Windows 7 32 bit & 64 bit Editions

Microsoft Signed Drivers

Approved for Microsoft Windows 2008 32 bit Windows Server 2008 32 bit & 64 bit Editions
Microsoft Signed Drivers for Windows XP 32 et 64 bit editions Windows XP 32 bit & 64 bit editions
Microsoft Signed Drivers for Windows Server 2003 Windows Server 2003 32 bit & 64 bit Editions
Windows Vista Signed Drivers Windows Vista 32 bit & 64 bit editions
Approved for Windows 7 32bit & 64bit Windows 7 32 bit & 64 bit Editions

Other
