8 Port RS232 Ethernet to Serial Adapter ES-279

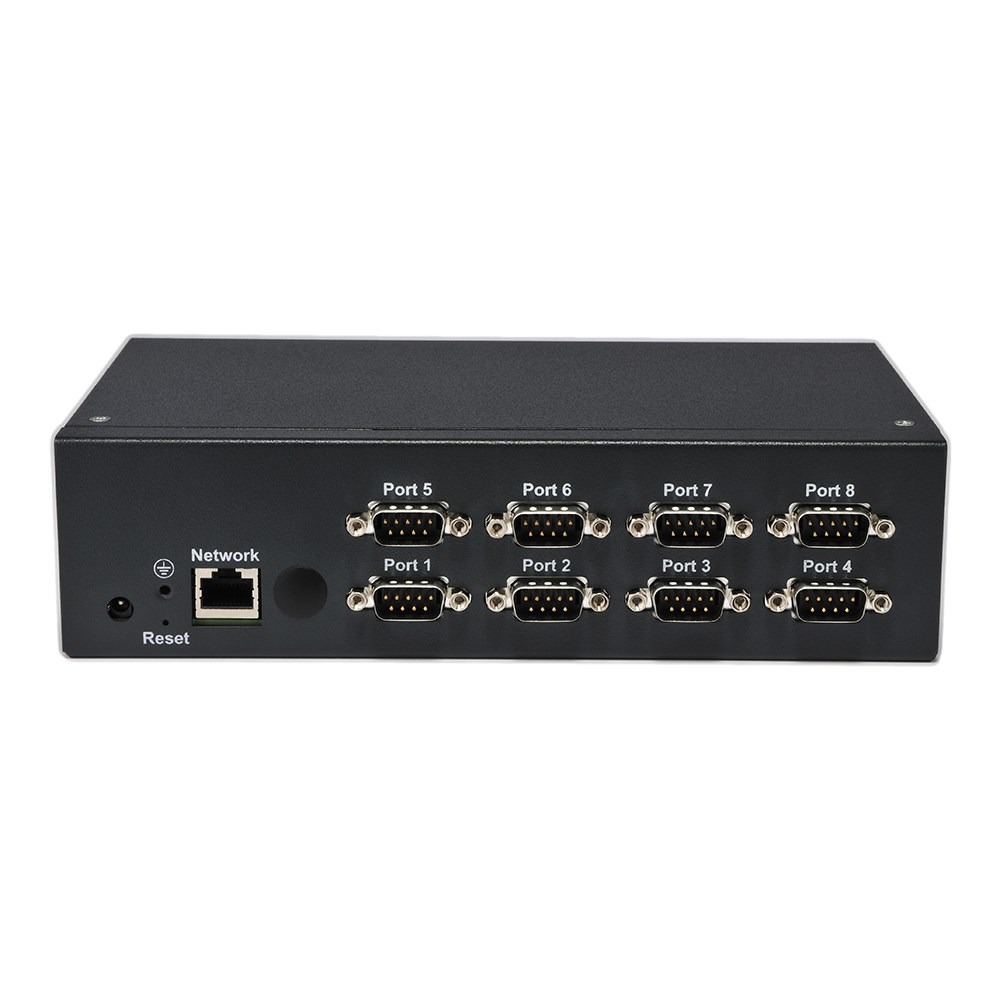

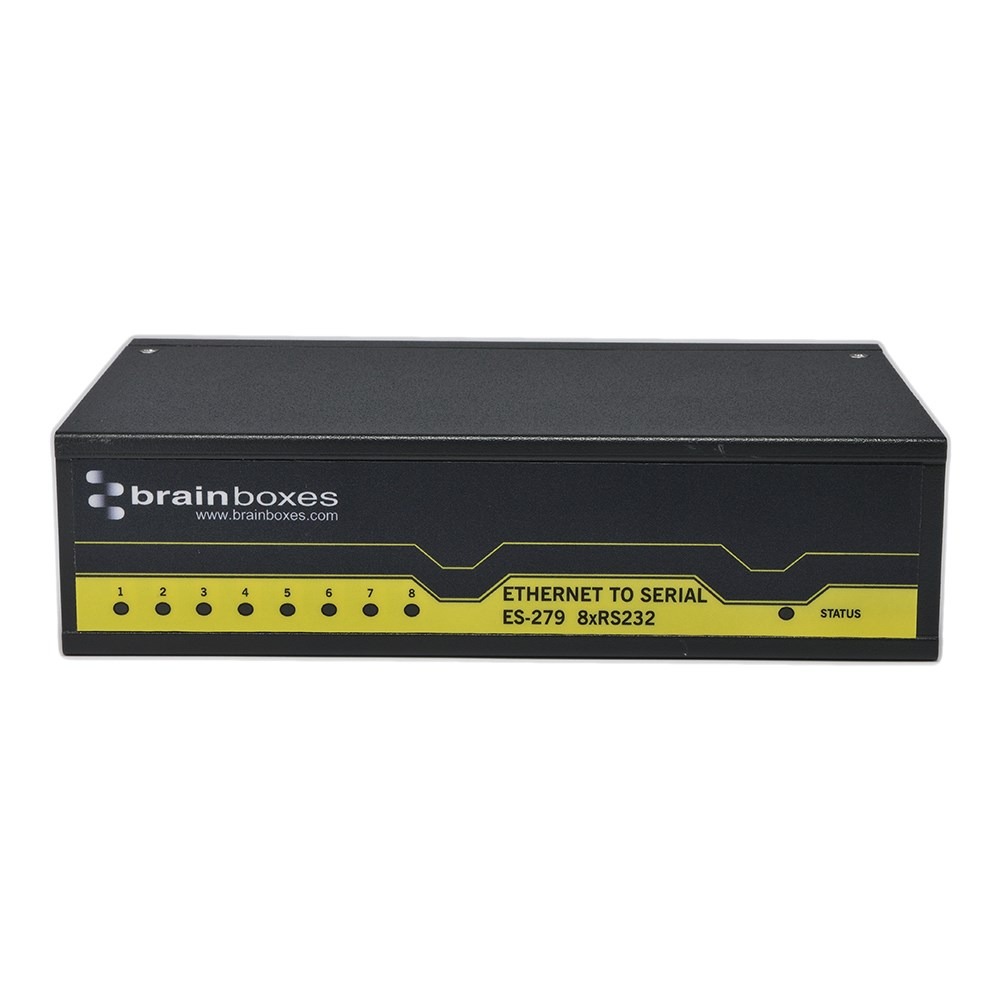

- 8 Port RS-232 Ethernet to Serial Device Server
- IP-30 rated steel enclosure
- Recommended for demanding flow control and latency applications such as CNC/DNC machine communications
- Data rate from 110 to 1,000,000 baud (1 MegaBaud)
- Serial Port Tunnelling allows serial cable replacement over any distance, no software required
- Install Virtual Com ports, communicate over TCP/IP or use the Software APIs for Visual Basic, C# and more
- ES-279-datasheet (0.94 MB)
Description
Ethernet to Serial device server providing access to 8 RS232 serial ports. Data transfer rates up to 1,000,000 baud rates (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values.
Our ES range provides simple instant networked serial ports. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser.
For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally.
Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Customer Feedback
Product Videos
Tech Spec
Serial Port | |
Ports | 8 |
Protocol | RS232 |
Connector | DB9 Connector - 9 Pin Male |
Tx FIFO Size | 2048 |
Rx FIFO Size | 2048 |
Operating Distance | EIA - RS232 Standard |
Cable | USB cable (Powered via industrial locking connector with 5V 3A power adaptor - supplied) |
Serial Port Settings | |
Max Baud Rate | 1,000,000 (1 MegaBaud) |
Data Bits | 5,6,7 or 8 |
Parity | Odd, Even, None, Mark or Space |
Stop Bits | 1, 1.5 or 2 |
Flow Control | RTS/CTS, DSR/DTR, XON/XOFF |
Tx/Rx Modes | Point to Point |
Power | |
Power Input | 5 - 30V DC input, reverse polarity protected |
Power Over Ethernet | No - this product does not have PoE capability |
Power Supply 1 Description | Global Power Supply - PW-800 |
Power Supply 2 Description | |
General | |
Mounting Accessories 1 Description | Snap In DIN Clip lit for 4&8 ports - MK-070 |
Mounting Accessories 2 Description | Wall Mounting Kit for 4&8 ports - MK-059 |
PCB Layers | 4 |
Operating Temperature Range | 0 °C to +60 °C / 32 °F to +140 °F |
Device Dims with ears | 96.3x101x25 |
Device Dims without ears | 91.6x77x25 |
Power Consumption | 1.93W (Typical) |
Product Weight | 0.824 kg, 29.07 ounces |

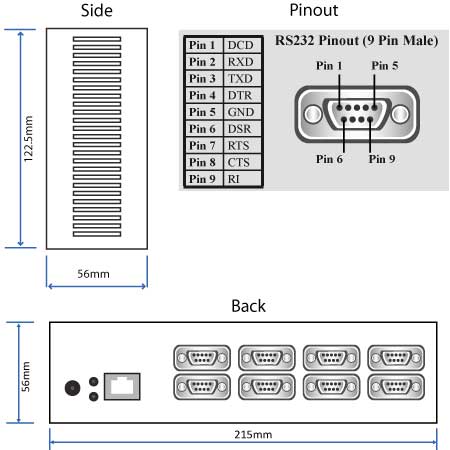

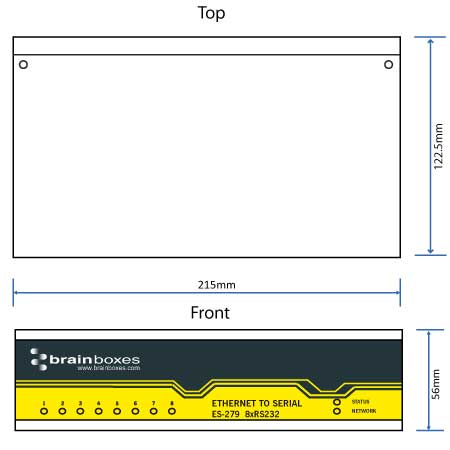

Product Dimensions | 215x132x56 mm, 8.5x5.2x2.2 inches |
Packaged Weight | 1.197 kg, 42.22 ounces |
Packaged Dimensions | 300x135x80 mm, 11.8x5.3x3.1 inches |
GTIN (barcode) | 837324009972 |
Operating System Compatibility | |
Operating Systems |
|
Interface | |
Ethernet | Ethernet Interface takes advantage of a companies pre-existing infrastructure, allowing you to connect to your Brainboxes device over the local network, or from across the world. |
