PX-279

Name: PX-279 8 Port RS232 PCI Express Serial Card 9 Pin Connectors - Brainboxes
SKU: PX-279
Price: 742.50 USD
Availability: InStock
Rating: 5.00 (1 reviews)

8 Port RS232 PCI Express Serial Card 9 Pin Connectors

8 Port RS-232 Serial Card
PCI Express (PCIe) Card

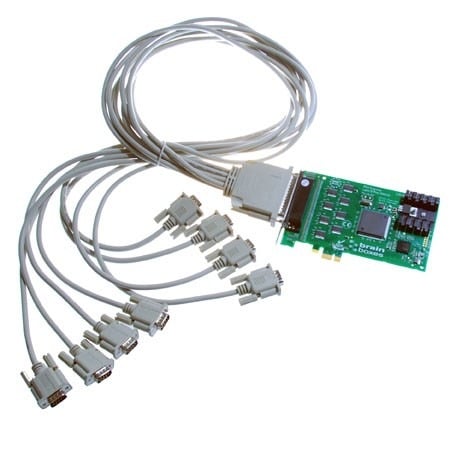

Includes 8 port cable DB9 connection
Data rate from 110 to 921,600 baud
Drivers for all popular operating systems including Windows 10,8,7, XP and 2000
Lifetime Warranty and Support

PDF Datasheet Download

$742.50

Add to Cart

Volume Purchase?Request a Quote

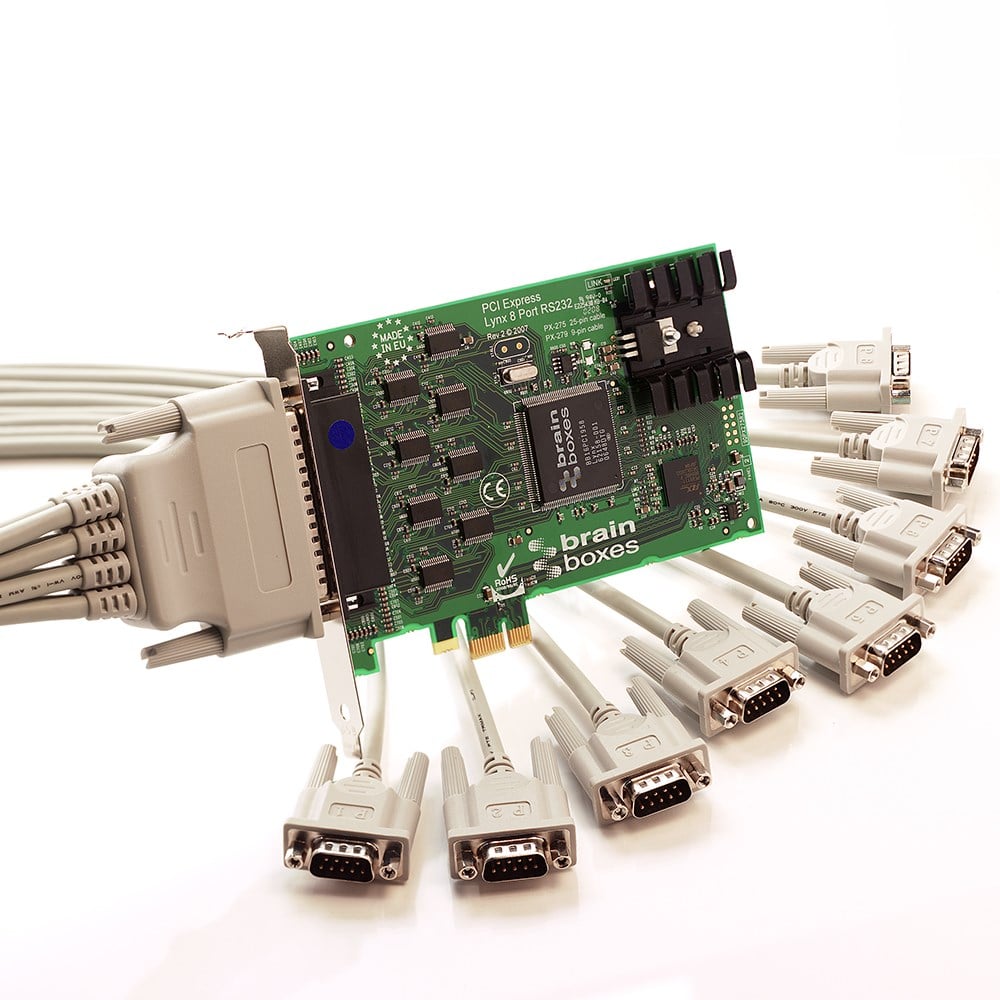

PCI Express Card providing eight RS232 serial ports connected using 9 pin cables. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, Windows 8 and Windows 10.

Serial Port
Serial Port	Ports	8
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	UART	Brainboxes 16C958
	UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
	Tx FIFO Size	32
	Rx FIFO Size	32
	Operating Distance	EIA - RS232 Standard

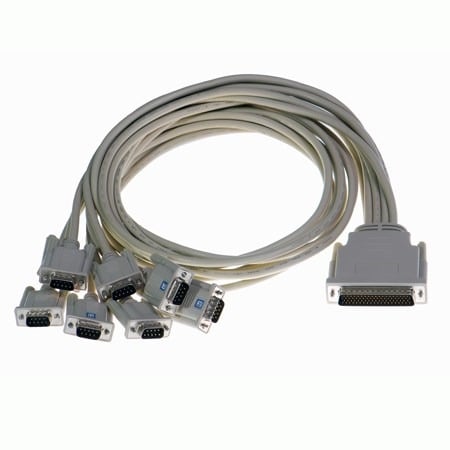

	Cable	8 port cable (78 way D to 8x9 Pin Male)
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Standard Height
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	490mA @ 3.3V, 210mA @ 12V
	Product Weight	0.12 kg
	Product Dimensions	165(l) x 120(w) x 18(h) mm
	Packaged Weight	1.028 kg
	Packaged Dimensions	300(l) x 135(w) x 80(h) mm
	GTIN (barcode)	837324000825
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000
Interface
Interface	PCI Express x1, x4, x8 & x16 lane slots	PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.

Product Attributes

Weight	1.028 kg
Dimensions	300 × 135 × 80 mm
Ports	8 Ports
Form Factor	Standard Height
Protocol	RS232

1826
Ports: 8 Ports
Form Factor: Standard Height
Protocol: RS232
