PX-235

Name: PX-235 1 Port RS232 Low Profile PCI Express Serial Card - Brainboxes
SKU: PX-235
Price: 148.50 USD
Availability: InStock
Rating: 5.00 (1 reviews)

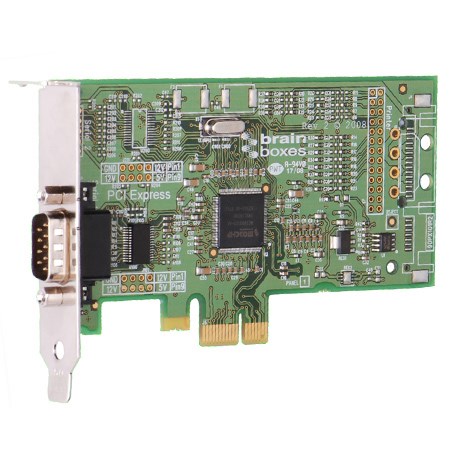

1 Port RS232 Low Profile PCI Express Serial Card

Alternative option: ES-246
LP PCIe 1xRS232 1MBaud

PDF Datasheet Download

$148.50

Add to Cart

Volume Purchase?Request a Quote

Low Profile PCI Express Card providing one RS232 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, delivers uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008, Windows 7, 8 and Windows 10.

NOT RECOMMENDED FOR NEW DESIGNS

EOL notification

Serial Port
Serial Port	Ports	1
	Protocol	RS232
	Connector	DB9 Connector - 9 Pin Male
	UART	Oxford 950
	UART Compatibility	16750/16550/16450 backwards compatibile
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	EIA - RS232 Standard
	Cable	No Cable; Integrated Connector
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DSR/DTR, XON/XOFF
	Tx/Rx Modes	Point to Point
General
General	PCB Layers	4
	Form Factor	Low Profile
	Includes Printer Port	No
	Galvanic Isolation	No
	Power Consumption	380mA @ 3.3V
	Product Weight	0.048 kg
	Product Dimensions	132(l) x 80(w) x 18(h) mm
	Packaged Weight	0.141 kg
	Packaged Dimensions	160(l) x 135(w) x 49(h) mm
	GTIN (barcode)	837324000207
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 10 Microsoft Windows 8 32 bit & 64 bit Editions Microsoft Windows 7 32 bit & 64 bit Editions Windows Server 2008 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000
Interface
Interface	PCI Express x1, x4, x8 & x16 lane slots	PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.

Product Attributes

Weight	0.141 kg
Dimensions	160 × 135 × 49 mm
Ports	1 Port
Form Factor	Low Profile
Protocol	RS232

1792
Ports: 1 Port
Form Factor: Low Profile
Protocol: RS232
