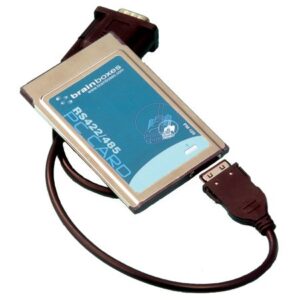

PM-121 2 Port RS422/485 PCMCIA with detachable cables

Name: PM-121 2 Port RS422/485 PCMCIA with detachable cables - Brainboxes
Brand: Brainboxes
SKU: PM-121
Price: 175.00 GBP
Availability: InStock

Discontinued

Brainboxes ES-346 rs-422485 serial connector 9-pin pinout wiring diagram with pin assignments

PC Card providing two RS422/485 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. The detachable cables allow the PC card to stay in the laptop without risk of damage during transit. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 95/98/2000, XP, Server 2003, Vista, Server 2008 and Windows 7.

See other products the same category as PM-121: Discontinued

Serial Port
Serial Port	Ports	2
	Protocol	RS422/485
	Connector	DB9 Connector - 9 Pin Male
	UART	Brainboxes 16PCI950+
	UART Compatibility	16750/16550/16450 backwards compatible as well as an enhanced 950 mode
	Tx FIFO Size	128
	Rx FIFO Size	128
	Operating Distance	RS422/485 Standard (4000 ft : 1200 metres)
	Cable	2 Port Cable: DB9 connector (9 Pin Male)
Serial Port Settings
Serial Port Settings	Max Baud Rate	921,600
	Data Bits	5,6,7 or 8
	Parity	Odd, Even, None, Mark or Space
	Stop Bits	1, 1.5 or 2
	Flow Control	RTS/CTS, DTR/DSR
	Tx/Rx Modes	Full Duplex, Half Duplex Autogating
General
General	Ruggedised	No
	PCB Layers	4
	Power Consumption	100mA @ 5V
	Product Weight	0.029 kg
	Product Dimensions	85(l) x 54(w) x 5(h) mm
	Packaged Weight	0.167 kg
	Packaged Dimensions	160(l) x 135(w) x 45(h) mm
	GTIN (barcode)	837324000115
Operating System Compatibility
Operating System Compatibility	Operating Systems	Microsoft Windows 7 32 bit & 64 bit Editions Windows Vista 32 bit & 64 bit Editions Windows XP 32 bit & 64 bit Editions Microsoft Windows 2000
Interface
Interface	PCMCIA	PCMCIA (Personal Computer Memory Card International Association) is an international standards body and trade association with over 100 member companies that was founded in 1989 to establish standards for Integrated Circuit cards and to promote interchangeability among mobile computers where ruggedness, low power, and small size were critical. Change
