PX-246

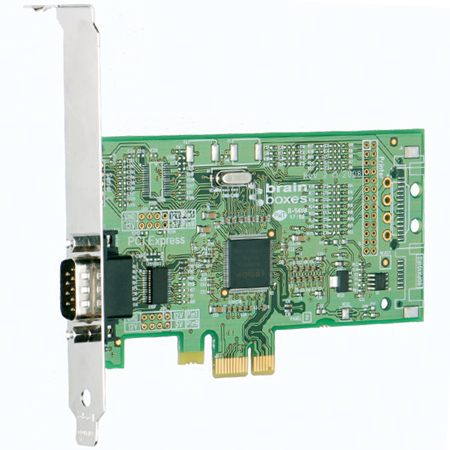

1 Port RS232 PCI Express Serial Card

Description
PCI Express Card providing one RS232 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, delivers uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008 and Windows 7.
Documents
PX 246 datasheetPX-246-datasheet.pdf (1.1 MB)
PX RS232 PCIe range summary English.PX ENPX-RS232-PCIe-range-summary-English.PX-EN.pdf (1.9 MB)
PX RS422 485 PCIe range summary English.PX ENPX-RS422-485-PCIe-range-summary-English.PX-EN.pdf (1.7 MB)
Brief Specification
Ports
1
Protocol
RS232
UART
Oxford 950
Max Baud Rate
921,600
Form Factor
Standard Height

If you buy 2 or more products

free shipping

Volume Purchase? Request a Quote
  • Tech Spec
  • Operating Systems
  • Approvals
  • Support
  • Related Products
Port
Ports
1
Protocol
RS232
Connector

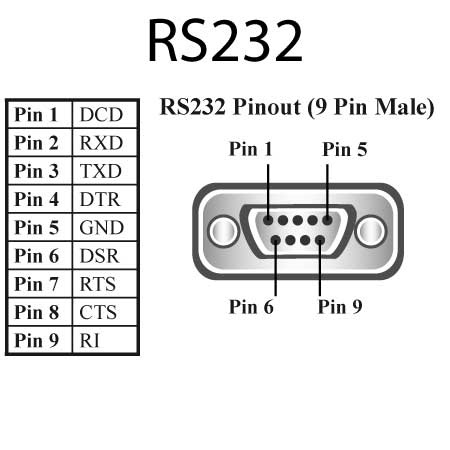

DB9 Connector - 9 Pin Male
UART
Oxford 950
UART Compatibility
16750/16550/16450 backwards compatibile
Tx FIFO Size
128
Rx FIFO Size
128
Operating Distance
EIA - RS232 Standard
Cable
No Cable; Integrated Connector
Port Settings
Max Baud Rate
921,600
Data Bits
5,6,7 or 8
Parity
Odd, Even, None, Mark or Space
Stop Bits
1, 1.5 or 2
Flow Control
RTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx Modes
Point to Point
General
PCB Layers
4
Form Factor
Standard Height
Includes Printer Port
No
Opto Isolated
No
Power Consumption
380mA @ 3.3V
Product Weight
0.055 kg, 0.12 pounds
Product Dimensions
132(l) x 18(w) x 120(h) mm, 5.20(l) x 0.71(w) x 4.72(h) inches
Packaged Weight
0.158 kg, 0.35 pounds
Packaged Dimensions
15000(l) x 145(w) x 4400(h) mm, 590.55(l) x 5.71(w) x 173.23(h) inches
GTIN-12
837324002065

Interface

PCI Express x1, x4, x8 & x16 lane slots
PCI Express x1, x4, x8 & x16 lane slots
PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.
