XC-475

1 Port RS232 and 1 Printer Port LPT PCIe ExpressCard Serial Adapter absolute compatibility, guaranteed low latency, memory mapped

Description
ExpressCard providing one RS232 serial port and one Printer port where absolute compatibility with classic desktop serial COM ports and parallel LPT printer ports is a necessity. ExpressCard is 34mm wide and fits 34mm or 54mm slots. Guaranteed low latency, memory mapped, no compromise high performance interface. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008 and Windows 7.
Documents
XC 475 datasheetXC-475-datasheet.pdf (961.5 kB)
Brief Specification
Ports
2
Protocol
RS232 + LPT Printer
Max Baud Rate
921,600
Ruggedised
No
free shipping

Volume Purchase? Request a Quote

  • Tech Spec
  • Operating Systems
  • Approvals
  • Support
  • Related Products
Port
Ports
2
Protocol
RS232 + LPT Printer
Connector

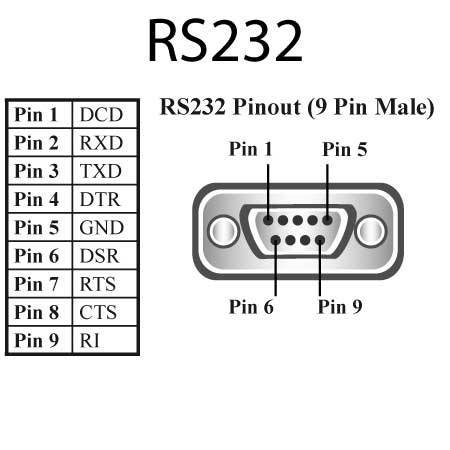

DB9 Connector (9 Pin Male) & DB25 Connector (25 Pin Male)
Tx FIFO Size
128
Rx FIFO Size
128
Operating Distance
EIA - RS232 Standard
Cable
1xDB9 & 1xDB25
Port Settings
Max Baud Rate
921,600
Data Bits
5,6,7 or 8
Parity
Odd, Even, None, Mark or Space
Stop Bits
1 or 2
Flow Control
RTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx Modes
Point to Point
General
Ruggedised
No
PCB Layers
4
ExpressCard Width
34mm (fits both 34mm and 54mm ExpressCard slots)
Power Consumption
380mA @ 3.3V
Product Weight
0.044 kg, 0.10 pounds
Product Dimensions
110(l) x 46(w) x 20(h) mm, 4.33(l) x 1.81(w) x 0.79(h) inches
Packaged Weight
0.16 kg, 0.35 pounds
Packaged Dimensions
150(l) x 145(w) x 44(h) mm, 5.91(l) x 5.71(w) x 1.73(h) inches
GTIN-12
837324002324

Interface

ExpressCard PCIe Implementation
ExpressCard PCIe Implementation
ExpressCard PCIe Implementation. Unlike the VX range which uses USB technology over ExpressCard, this uses PCI Express technology over ExpressCard. All Brainboxes XC cards are PCI Express Base Specification 1.1 Compliant.
Windows XP 32 bit & 64 bit Editions
Windows Vista 32 bit & 64 bit Editions
Microsoft Windows 7 32 bit & 64 bit Editions

Microsoft Hardware

Approved for Microsoft Windows XP 32 bit and 64 bit Windows XP 32 bit & 64 bit editions
Approved for Microsoft Windows Vista Windows Vista 32 bit & 64 bit editions
Approved for Windows 7 32bit & 64bit Windows 7 32 bit & 64 bit Editions

Microsoft Signed Drivers

Microsoft Signed Drivers for Windows XP 32 et 64 bit editions Windows XP 32 bit & 64 bit editions
Windows Vista Signed Drivers Windows Vista 32 bit & 64 bit editions
Approved for Windows 7 32bit & 64bit Windows 7 32 bit & 64 bit Editions

Other

The CE marking (also known as CE mark) is a mandatory conformity mark on many products placed on the single market in the European Economic Area (EEA). All Brainboxes products are fully compliant to European requirements which allow them to bear the CE mark. EMC: CE
Brainboxes are able to supply fully RoHS compliant products. To verify supplier declarations on RoHS compliance, fully built products were sent to an external test house for X-Ray Fluorescence (XRF) testing on components, using the Fischerscope X-Ray system XDAL. This technique is capable of determining percentages of different elements and is accurate to 0.1% Wt. RoHS
Brainboxes is fully compliant with the WEEE (Waste Electrical and Electronic Equipment) 2002/96/EC directives which tackle the increasing waste stream of electrical and electronic equipment and complements European Union measures on Landfill and incineration of waste. WEEE
In 2007 Brainboxes received Microsoft Gold Partner status. In recognition of achieving exceptional levels of quality, expertise and service endorsed by customers including Lenovo. Microsoft Certified Gold Partner
TAA refers to the Trade Agreements Act (19 U.S.C. & 2501-2581), which is intended to foster fair and open international trade. Being manufactured in the United Kingdom all Brainboxes products are fully TAA compliant. TAA
The introduction of AEO status is the EC's response to the need to secure international supply chains and the introduction of Customs-Trade Partnership Against Terrorism (C-TPAT) in the USA and the development of the Safe framework of standards in the World Customs Organisation. Brainboxes is a fully certified AEO (Authorised Economic Operator) organisation. AEO C-TPAT
