PX-368

4 Port RS422/485 PCI Express Serial Port Card With Opto Isolation

Description

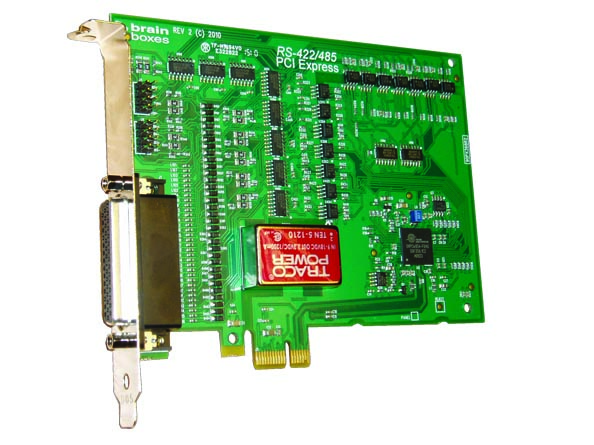

PCI Express card providing four Opto Isolated RS422/485 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 128 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 2000, XP, Server 2003, Vista, Server 2008 and Windows 7.
Documents
PX 368 datasheetPX-368-datasheet.pdf (1.1 MB)
PX RS232 PCIe range summary English.PX ENPX-RS232-PCIe-range-summary-English.PX-EN.pdf (1.9 MB)
PX RS422 485 PCIe range summary English.PX ENPX-RS422-485-PCIe-range-summary-English.PX-EN.pdf (1.7 MB)
Brief Specification
Ports
4
Protocol
RS422/485
UART
Oxford 950
Max Baud Rate
921,600
Form Factor
Standard Height
free shipping

Volume Purchase? Request a Quote
  • Tech Spec
  • Operating Systems
  • Approvals
  • Support
  • Related Products
Port
Ports
4
Protocol
RS422/485
Connector
DB9 Connector - 9 Pin Male
UART
Oxford 950
UART Compatibility
16750/16550/16450 backwards compatibile
Tx FIFO Size
128
Rx FIFO Size
128
Operating Distance
RS422/485 Standard (4000 ft : 1200 metres)
Cable
4 port cable (44 way D to 4x9 Pin)
Port Settings
Max Baud Rate
921,600
Data Bits
5,6,7 or 8
Parity
Odd, Even, None, Mark or Space
Stop Bits
1, 1.5 or 2
Flow Control
RTS/CTS, XON/XOFF
Tx/Rx Modes
Full Duplex, Half Duplex Autogating - Hardware Autogating
General
PCB Layers
4
Form Factor
Standard Height
Includes Printer Port
No
Opto Isolated
Yes
Power Consumption
400mA@3.3V, 140mA@12V
Product Weight
0.109 kg, 0.24 pounds
Product Dimensions
153(l) x 18(w) x 128(h) mm, 6.02(l) x 0.71(w) x 5.04(h) inches
Packaged Weight
awaiting
Packaged Dimensions
awaiting
GTIN-12
837324009927

Interface

PCI Express x1, x4, x8 & x16 lane slots
PCI Express x1, x4, x8 & x16 lane slots
PCI Express (Peripheral Component Interconnect Express), officially abbreviated as PCI-E or PCIe, is a computer expansion card standard introduced by Intel in 2004. All Brainboxes PX cards are PCI Express Base Specification 1.1 Compliant.
