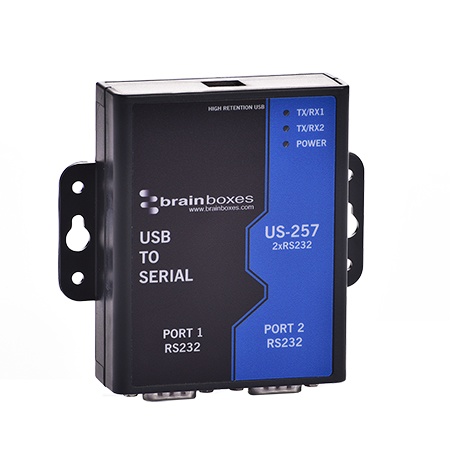

us 257 usb 2 port rs232 1mbaud
  • 2 Port RS-232 USB to Serial Adapter
  • Data rate from 300 to 921,600 baud
  • High Retention USB Socket
  • Drivers for all popular operating systems including Windows 10
  • Works where many other USB to Serial devices do not
  • Lifetime Warranty and Support
  • US-257-datasheet (0.67 MB)
Volume Purchase? Request a Quote

Request a Quote

Description

USB to Serial adapter providing two RS232 serial ports. Data transfer rates up to 921,600 baud rates and the 128 byte transmit and 384 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. High retention USB port gives a secure connection.

Drivers for Windows 32 bit and 64 bit Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux. Lifetime warranty and support.

Customer Feedback

Operating Systems



Tech Spec

Serial Port
Ports2
ProtocolRS232
ConnectorDB9 Connector - 9 Pin Male
Tx FIFO Size128
Rx FIFO Size384
Operating DistanceEIA - RS232 Standard
CableUSB cable Type A to B (0.5 metre ~ 1.5ft)
Serial Port Settings
Max Baud Rate1,000,000 (1 MegaBaud)
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Tx/Rx ModesPoint to Point
General
PCB Layers4
Operating Temperature Range0 °C to +60 °C / 32 °F to +140 °F
Industrial StandardNo
Power Consumption100mA @ 3.3V
Product Weight0.109 kg, 3.84 ounces
Product Dimensions102x100x27 mm, 4.0x3.9x1.1 inches
Packaged Weight0.260 kg, 9.17 ounces
Packaged Dimensions160x135x49 mm, 6.3x5.3x1.9 inches
GTIN (barcode)837324000153
Operating System Compatibility
Operating Systems
  • Microsoft Windows 10
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Mac OS X
  • Windows XP 32 bit & 64 bit Editions
  • Linux
Interface
USB 2.0480 Mb/s USB 2.0 data rates.

Approvals

Microsoft Signed Drivers


Microsoft Hardware


Other
