VX-012

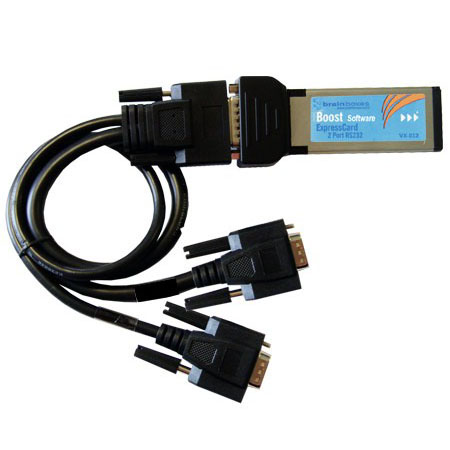

2 Port RS232 ExpressCard Serial Adapter with detachable cable and Megabaud data rate

Description
ExpressCard providing two RS232 serial ports. ExpressCard is 34mm wide and fits 34mm or 54mm slots. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 384 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your laptop. Drivers for Windows 32 bit and 64 bit Operating Systems including Windows XP, Server 2003, Vista, Server 2008 and Windows 7.
Documents
VX 012 datasheetVX-012-datasheet.pdf (930.7 kB)
VX ExpressCard range summary English.VX ENVX-ExpressCard-range-summary-English.VX-EN.pdf (1.8 MB)
Brief Specification
Ports
2
Protocol
RS232
Max Baud Rate
921,600
Ruggedised
No

If you buy 2 or more products

free shipping

Volume Purchase? Request a Quote

  • Tech Spec
  • Operating Systems
  • Approvals
  • Support
  • Related Products
Port
Ports
2
Protocol
RS232

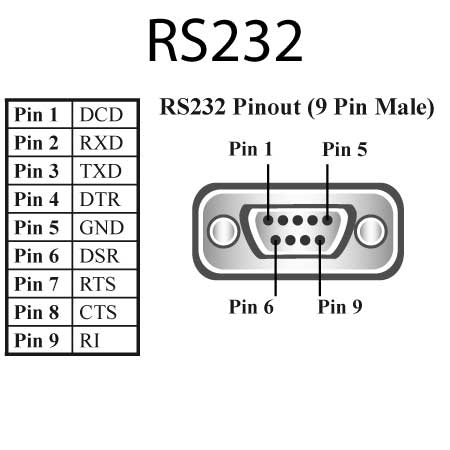

Connector
DB9 Connector - 9 Pin Male
Tx FIFO Size
128
Rx FIFO Size
256
Operating Distance
EIA - RS232 Standard
Cable
2 Port Cable: DB9 connector (9 Pin Male)
Port Settings
Max Baud Rate
921,600
Data Bits
7 or 8
Parity
Odd, Even, None, Mark or Space
Stop Bits
1 or 2
Flow Control
RTS/CTS, DSR/DTR, XON/XOFF
Tx/Rx Modes
Point to Point
General
Ruggedised
No
PCB Layers
4
ExpressCard Width
34mm (fits both 34mm and 54mm ExpressCard slots)
Power Consumption
90mA @ 3.3V
Product Weight
0.038 kg, 0.08 pounds
Product Dimensions
110(l) x 46(w) x 20(h) mm, 4.33(l) x 1.81(w) x 0.79(h) inches
Packaged Weight
0.241 kg, 0.53 pounds
Packaged Dimensions
150(l) x 40(w) x 145(h) mm, 5.91(l) x 1.57(w) x 5.71(h) inches
GTIN-12
837324001464

Interface

USB 2.0
USB 2.0
480 Mb/s USB 2.0 data rates.
Windows XP 32 bit & 64 bit Editions
Linux
Windows Vista 32 bit & 64 bit Editions
Microsoft Windows 7 32 bit & 64 bit Editions
Mac OS X

Microsoft Hardware

Approved for Microsoft Windows XP 32 bit and 64 bit Windows XP 32 bit & 64 bit editions
Approved for Microsoft Windows Vista Windows Vista 32 bit & 64 bit editions
Approved for Windows 7 32bit & 64bit Windows 7 32 bit & 64 bit Editions

Microsoft Signed Drivers

Microsoft Signed Drivers for Windows XP 32 et 64 bit editions Windows XP 32 bit & 64 bit editions
Windows Vista Signed Drivers Windows Vista 32 bit & 64 bit editions
Approved for Windows 7 32bit & 64bit Windows 7 32 bit & 64 bit Editions

Other

The CE marking (also known as CE mark) is a mandatory conformity mark on many products placed on the single market in the European Economic Area (EEA). All Brainboxes products are fully compliant to European requirements which allow them to bear the CE mark. EMC: CE
Brainboxes are able to supply fully RoHS compliant products. To verify supplier declarations on RoHS compliance, fully built products were sent to an external test house for X-Ray Fluorescence (XRF) testing on components, using the Fischerscope X-Ray system XDAL. This technique is capable of determining percentages of different elements and is accurate to 0.1% Wt. RoHS
Brainboxes is fully compliant with the WEEE (Waste Electrical and Electronic Equipment) 2002/96/EC directives which tackle the increasing waste stream of electrical and electronic equipment and complements European Union measures on Landfill and incineration of waste. WEEE
MetLab approval METL
In 2007 Brainboxes received Microsoft Gold Partner status. In recognition of achieving exceptional levels of quality, expertise and service endorsed by customers including Lenovo. Microsoft Certified Gold Partner
TAA refers to the Trade Agreements Act (19 U.S.C. & 2501-2581), which is intended to foster fair and open international trade. Being manufactured in the United Kingdom all Brainboxes products are fully TAA compliant. TAA
Le marquage C-Tick est utilis� pour montrer qu'un produit �lectrique ou �lectronique est conforme � la compatibilit� �lectromagn�tique (CEM). le num�ro d'enregistrement de Brainboxes est N136. C-Tick
The introduction of AEO status is the EC's response to the need to secure international supply chains and the introduction of Customs-Trade Partnership Against Terrorism (C-TPAT) in the USA and the development of the Safe framework of standards in the World Customs Organisation. Brainboxes is a fully certified AEO (Authorised Economic Operator) organisation. AEO C-TPAT
