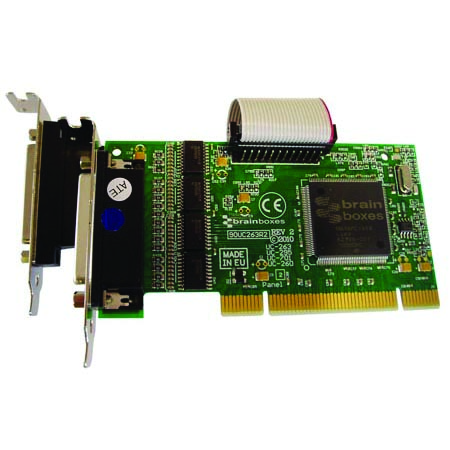

uc 263 lp upci 4xrs232 lpt printer port

Universal PCI providing four RS232 serial ports and one LPT port (4 industry standard 9 pin D RS232 ports with 25 pin D LPT port on a flylead). Data transfer rates up to 115,200 baud rates and the 64 byte deep transmit and 64 byte receive FIFOS, coupled with 1Mbit/s line drivers deliver uncompromising performance on your PC.Includes drivers for all Windows 32 bit and 64 bit Operating Systems, including Windows 8.

Volume Purchase? Request a Quote

Request a Quote

Customer Feedback

Operating Systems

Tech Spec

Serial Port
ConnectorDB9 Connector (9 Pin Male) and LPT port (25 Pin Female)
UARTBrainboxes 16C958
UART Compatibility16750/16550/16450 backwards compatible as well as an enhanced 950 mode
Tx FIFO Size64
Rx FIFO Size64
Operating DistanceEIA - RS232 Standard
CableNo Cable; Integrated Connector
Serial Port Settings
Max Baud Rate115,200
Data Bits5,6,7 or 8
ParityOdd, Even, None, Mark or Space
Stop Bits1, 1.5 or 2
Tx/Rx ModesPoint to Point
Printer Port
Printer Port1
Printer Port ProtocolLPT
Printer Port Connector25 Pin Female D Connector on Fly Lead
PCB Layers4
Form FactorLow Profile
Includes Printer PortYes
Galvanic IsolationNo
Power Consumption300mA @ 5V, 60mA @12V
Product Weight0.069 kg, 2.43 ounces
Product Dimensions135x80x18 mm, 5.3x3.1x0.7 inches
Packaged Weight0.688 kg, 24.27 ounces
Packaged Dimensions200x135x80 mm, 7.9x5.3x3.1 inches
GTIN (barcode)837324002157
Operating System Compatibility
Operating Systems
  • Microsoft Windows 8 32 bit & 64 bit Editions
  • Windows Server 2012
  • Microsoft Windows 7 32 bit & 64 bit Editions
  • Windows Server 2008 32 bit & 64 bit Editions
  • Windows Vista 32 bit & 64 bit Editions
  • Windows XP 32 bit & 64 bit Editions
  • DOS
PCI 3.0Peripheral Component Interface


Microsoft Signed Drivers
